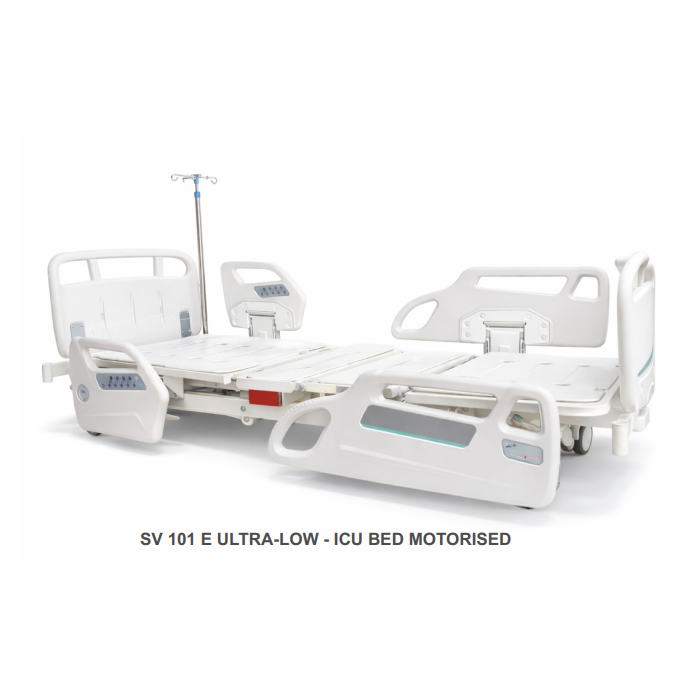

SV 101 E ULTRA-LOW - ICU BED MOTORISED

SV 101 E ULTRA-LOW - ICU BED MOTORISED

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height350 mm to 650 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 11/15°
Reverse Trendelenburg0° - 11/15°
Safe Working Load200 kg
Patient Weight Bearing Capacity175 kg

STANDARD FEATURES

  • Major Features Include: Back Rest, Knee Rest, TB, RTB & Hi-Low Position controlled by four separate linear actuators which are operated through Hand remote.
  • Frame work made of strong Rectangular CRCA tubular construction.
  • Four section top made of perforated Removable ABS/PP top.
  • Detachable ABS/PP Head & Foot panel.
  • Embedded ABS/PP railing on head side inner & outer both.
  • Provided with Corner buffers to absorbs impact & reduce damage during handling.
  • S.S telescopic IV Rod with 4 foldable hooks.
  • Provision for mattress guard & urine bag holder on both side.
  • Provided with 125 mm dia heavy duty Central Locking Castors for smooth mobility with control.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 density.
  • Finish : Pre-treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS/PP moulded Head & Foot panel
  • Embedded ABS/PP railing
  • IV Pole
  • Central locking Castors
  • Mattress
  • ABS/PP perforated top

OPTIONAL ACCESSORIES

  • Battery Backup
  • Manual CPR
  • Xray permeable Backrest
  • Bed Extension
  • ACP handset
Enquiry Now

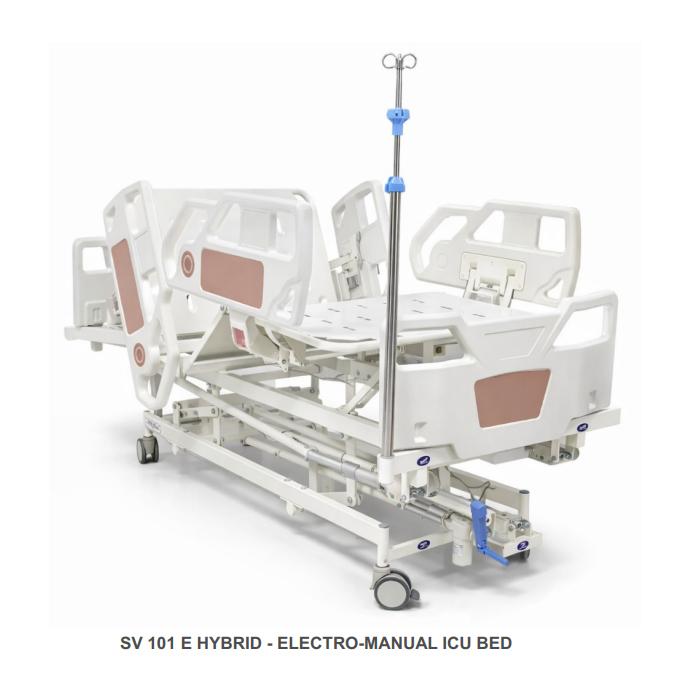

SV 101 E HYBRID - ELECTRO-MANUAL ICU BED

SV 101 E HYBRID - ELECTRO-MANUAL ICU BED

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height550 mm to 800 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 15°
Reverse Trendelenburg0° - 15°
Safe Working Load200 kg
Patient Weight Bearing Capacity175 kg

STANDARD FEATURES

  • Major Features Include: Back Rest, Knee Rest, TB, RTB & Hi-Low Position controlled by four separate linear actuators which are operated through Hand remote & manually through cranks.
  • Frame work made of strong Rectangular CRCA tubular construction.
  • Four section top made of CRCA sheet.
  • Detachable ABS/PP Head & Foot Panel.
  • Provided with four sectional ABS/PP safety rails with angle indicator.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • S.S telescopic IV Rod with 4 foldable hooks.
  • Provision for Mattress guard & urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 Density.
  • Finish :- Pre-treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS moulded Head & Foot panel
  • IV Pole
  • Mattress
  • ABS/PP side rails
  • Wheels

OPTIONAL ACCESSORIES

  • Xray permeable Backrest
  • Central locking wheels
  • ACP handset with CPR Feature
Enquiry Now

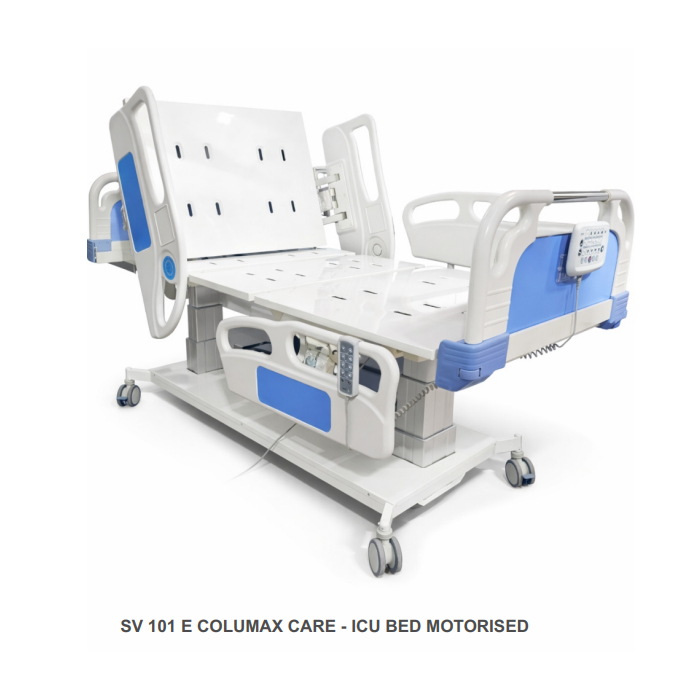

SV 101 E COLUMAX CARE - ICU BED MOTORISED

SV 101 E COLUMAX CARE - ICU BED MOTORISED

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1100mm (LxW)
Mattress Platform1850 mm x 905 mm (LxW)
Mattress Platform Height550 mm to 950 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 17°
Reverse Trendelenburg0° - 17°
Safe Working Load275 kg
Patient Weight Bearing Capacity250 kg

STANDARD FEATURES

  • Major Features Include : Backrest, Kneerest, Height Adjustment,Trendelenburg / Reverse Trendelenburg, Zero level position controlled by two separate linear actuators and two column motors which are operated through Hand remote & Nurse panel.
  • Mattress area divided into 4 sections made up of ABS/PP top.
  • Detachable ABS/PP head & foot panel.
  • Provided with four sectional ABS/PP safety side rails with angle indicators.
  • Base covered with CRCA sheet to enhance look.
  • Provided with corner buffers to absorb impact & reduce damage during handling.
  • S.S telescopic IV Rod with 4 foldable hooks.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • Provision for Mattress guard & urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 Density.
  • Finish: Pre- treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS/PP Head & Foot panel
  • ABS/PP railing
  • Wheels
  • IV Pole
  • Mattress

OPTIONAL ACCESSORIES

  • Battery Backup
  • Manual CPR
  • Xray permeable Backrest
Enquiry Now
SV 101 E PREMIUM - ICU BED 7 FUNCTION MOTORISED

SV 101 E PREMIUM - ICU BED 7 FUNCTION MOTORISED

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height550 mm to 800 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 15°
Reverse Trendelenburg0° - 15°
Safe Working Load200 kg
Patient Weight Bearing Capacity175 kg

STANDARD FEATURES

  • STANDARD FEATURES- Major Features Include: Backrest, Kneerest, Height Adjustment, Trendelenburg / Rev. Trendelenburg, Single button Cardiac Chair position, Neuro position, Zero level position controlled by four separate linear actuators which are operated through Hand remote & Nurse panel.
  • Mattress area divided into 4 sections made up of ABS/PP top.
  • Detachable ABS/PP head & foot panel.
  • Provided with four sectional ABS/PP safety side rails with angle indicators.
  • Provided with corner buffers to absorb impact & reduce damage during handling.
  • S.S telescopic IV Rod with 4 foldable hooks.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • Provision for Mattress guard & urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality reine of 40 Density.
  • Fibre base cover to protect from dust.
  • Finish: Pre- treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • STANDARD ACCESSORIES- ABS/PP Head & Foot panel
  • ABS/PP side railing
  • Wheels
  • ACP Handset
  • Fiber Base Cover
  • IV Pole
  • Mattress

OPTIONAL ACCESSORIES

  • Battery Backup
  • Manual CPR
  • Central locking Castors
Enquiry Now
SV 101 E GENERAL - ICU BED MOTORISED

SV 101 E GENERAL - ICU BED MOTORISED

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height550 mm to 800 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 15°
Reverse Trendelenburg0° - 15°
Safe Working Load200 kg
Patient Weight Bearing Capacity175 kg

STANDARD FEATURES

  • Major Features Include : Backrest, Kneerest, Height Adjustment, Trendelenburg / Reverse Trendelenburg, Zero level position controlled by four separate linear actuators which are operated through Hand remote only.
  • Detachable ABS/PP head & foot panel.
  • Provided with Collapsible safety side rails.
  • Mattress area divided into 4 sections made up of CRCA sheet.
  • Provided with Heavy duty IV pole having provisions of fixing on four locations.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • Provision for Urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 Density.
  • Finish: Pre- treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS/PP Head & Foot panel
  • Collapsible railing
  • Mattress
  • IV Pole
  • Wheels

OPTIONAL ACCESSORIES

  • Battery Backup
  • Manual CPR
  • Xray permeable Backrest
  • Central locking wheels
  • Corner Buffer
Enquiry Now
SV 101 M STANDARD - ICU BED MECHANICAL

SV 101 M STANDARD - ICU BED MECHANICAL

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height550 mm to 775 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 10°
Reverse Trendelenburg0° - 7°
Safe Working Load150 kg
Patient Weight Bearing Capacity135 kg

STANDARD FEATURES

  • Major Features Include : Backrest, Kneerest, Height Adjustment, Trendelenburg/ Reverse Trendelenburg positions controlled by smooth crank mechanism with separate folding SS handles.
  • Detachable ABS/PP head & foot panel.
  • Provided with four sectional ABS/PP safety side rails with angle indicators.
  • Mattress area divided into 4 sections made up of CRCA sheet.
  • Provided with Heavy duty IV pole having provisions of fixing on four locations.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • Provision for Mattress guard & urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 Density.
  • Finish: Pre- treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS/PP Head & Foot panel
  • ABS/PP side rails
  • Mattress
  • IV Pole
  • Wheels

OPTIONAL ACCESSORIES

  • Xray permeable Backrest
  • Central locking wheels
  • Corner Buffer
Enquiry Now
SV 101 M GENERAL - ICU BED MECHANICAL

SV 101 M GENERAL - ICU BED MECHANICAL

TECHNICAL SPECIFICATIONS

Overall Dimension2100 mm x 1050mm (LxW)
Mattress Platform1850 mm x 865 mm (LxW)
Mattress Platform Height550 mm to 775 mm (without mattress)
Backrest0° - 70°
Knee Rest0° - 45°
Trendelenburg0° - 10°
Reverse Trendelenburg0° - 7°
Safe Working Load150 kg
Patient Weight Bearing Capacity135 kg

STANDARD FEATURES

  • Major Features Include : Backrest, Kneerest, Height Adjustment, Trendelenburg/ Reverse Trendelenburg positions controlled by smooth crank mechanism with separate folding SS handles.
  • Detachable ABS/PP head & foot panel.
  • Provided with Collapsible safety side rails.
  • Mattress area divided into 4 sections made up of CRCA sheet.
  • Provided with Heavy duty IV pole having provisions of fixing on four locations.
  • Provided with Twin wheel heavy duty Diagonal locking castors wheels of 125mm dia for smooth mobility with control.
  • Provision for Urine bag holder on both side.
  • 4" thick Pu foam mattress covered with good quality rexine of 40 Density.
  • Finish: Pre- treated & Epoxy powder coated.

STANDARD ACCESSORIES

  • ABS/PP Head & Foot panel
  • Collapsible railing
  • Mattress
  • Wheels
  • IV Pole

OPTIONAL ACCESSORIES

  • Central locking wheels
  • Xray premeable Backrest
  • Corner Buffer
Enquiry Now
